300Ah LiFePO4 Battery: Key Questions Answered
The 300Ah LiFePO4 battery has gained popularity in renewable energy systems, RVs, marine applications, and off-grid setups due to its high capacity, safety, and long lifespan. However, users often have questions about its performance, limitations, and technical specifications. This article addresses the most common queries, providing a comprehensive guide for potential buyers and enthusiasts.
1. What Are the Disadvantages of LiFePO4 Batteries?
While LiFePO4 (Lithium Iron Phosphate) batteries are renowned for safety and durability, they do have some limitations:
- Lower Energy Density: Compared to other lithium-ion chemistries (e.g., NMC or LCO), LiFePO4 stores less energy per unit weight or volume, making them bulkier for high-energy applications like smartphones or EVs.
- Higher Initial Cost: Although cost-effective over time due to long lifespan, upfront prices are 2–3x higher than lead-acid batteries.
- Temperature Sensitivity: Performance declines in extreme cold (below -20°C) or heat (above 60°C). While they tolerate wider ranges than lead-acid, prolonged exposure to high temperatures reduces capacity.
- Slower Charging: LiFePO4 typically charges slower than other lithium variants, requiring specialized chargers to avoid damage.
Despite these drawbacks, their safety (non-combustible even under stress) and cycle life (2,000–5,000+ cycles) make them ideal for solar storage, RVs, and backup power.
2. How Long Will a 300Ah LiFePO4 Battery Last?
A 300Ah battery’s runtime depends on:
- Load Power: For a 500W appliance, runtime = Battery Energy (kWh)/Load Power (kW)
- Depth of Discharge (DoD): LiFePO4 batteries can safely discharge to 80–90% DoD without significant degradation.
Example:
A 48V 300Ah LiFePO4 battery stores 14.4 kWh (48V × 300Ah). At 80% DoD (11.5 kWh usable), powering a 1kW load would last ~11.5 hours. For a 300W RV fridge, runtime extends to ~38 hours.
3. How Many kWh Is a 48V 300Ah Battery?
A 48V 300Ah LiFePO4 battery delivers:
48V×300Ah=14,400Wh=14.4 kWh
This capacity suits large-scale applications like solar storage systems or electric vehicles. For comparison:
- A 12V 300Ah battery provides 3.84 kWh (12V × 300Ah).
- Higher voltage (e.g., 51.2V) configurations improve efficiency in industrial setups.
4. 25.6V vs. 51.2V: What’s the Difference?
LiFePO4 batteries are modular, allowing series connections to achieve higher voltages:
- 25.6V: Typically an 8-cell configuration (8 × 3.2V per cell), used in mid-sized systems like golf carts or small solar setups.
- 51.2V: A 16-cell setup, ideal for high-power applications like server racks or commercial energy storage.
Key Consideration: Higher voltage reduces current, minimizing energy loss in wiring and improving efficiency for large installations.
5. Is LiFePO4 Better Than Other Lithium Batteries?
LiFePO4 excels in safety and longevity but lags in energy density compared to lithium-ion (Li-ion) variants:
| Feature | LiFePO4 | Traditional Li-ion |
|---|---|---|
| Safety | Non-flammable, stable | Risk of thermal runaway |
| Cycle Life | 2,000–5,000+ cycles | 500–1,000 cycles |
| Energy Density | 90–120 Wh/kg | 150–200 Wh/kg |
| Cost | Higher upfront | Lower upfront |
Best For:
- LiFePO4: Solar storage, RVs, marine, backup power.
- Li-ion: Consumer electronics, EVs requiring compact size.
6. Key Considerations for 300Ah LiFePO4 Batteries
- BMS (Battery Management System): Ensures protection against overcharge, over-discharge, and short circuits.
- Compatibility: Use LiFePO4-specific chargers (e.g., 14.6V for 12V systems) to avoid damage.
- Storage: Store at 50–80% charge in cool, dry conditions to prolong lifespan.
Conclusion
The 300Ah LiFePO4 battery is a robust choice for high-capacity, long-term energy needs, balancing safety, and reliability. While it has limitations like lower energy density and higher initial costs, its advantages in cycle life and thermal stability make it a top contender for renewable energy and off-grid applications.

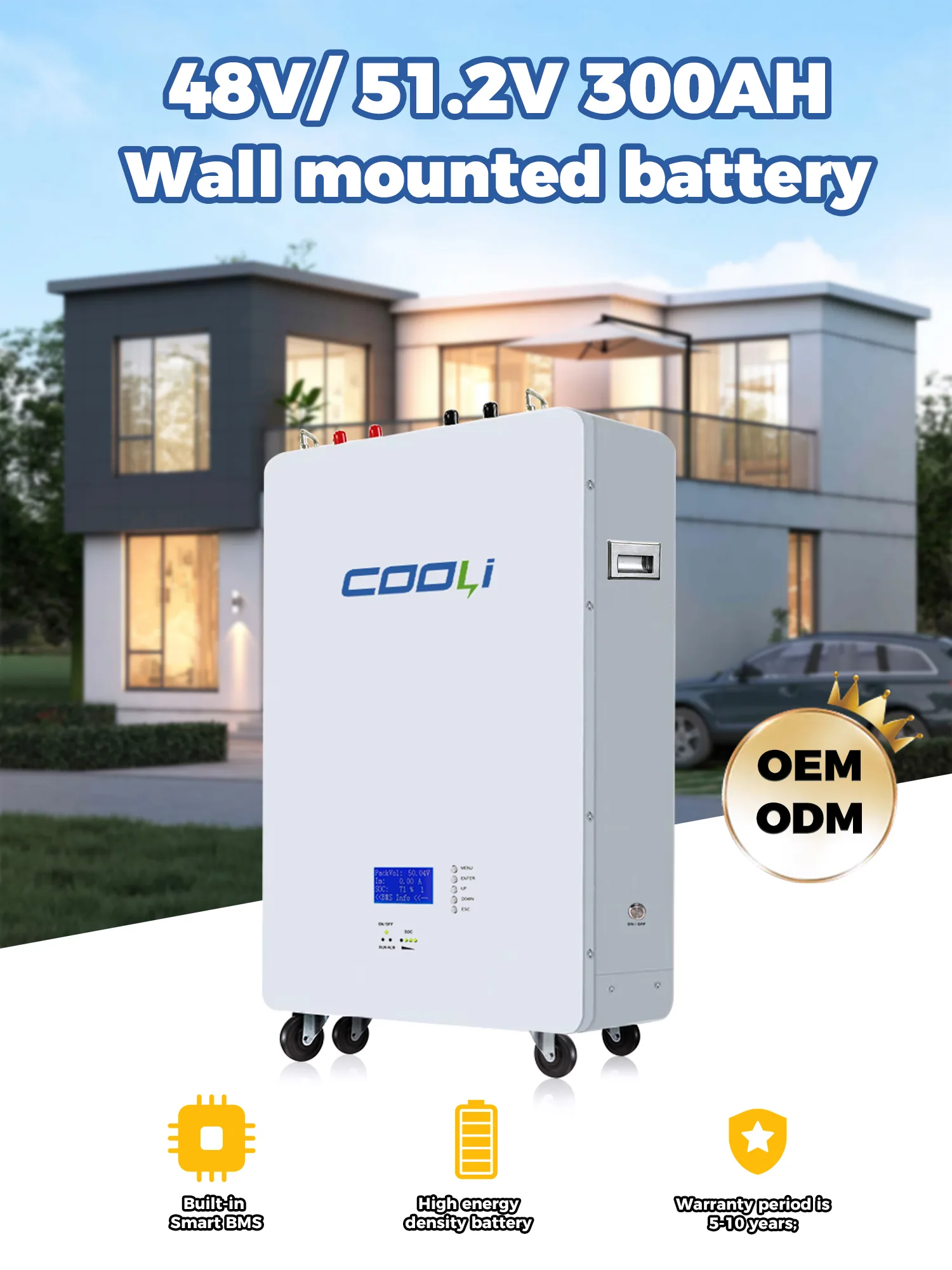

For tailored solutions, explore products like the Lifepo4 Battery 300ah or modular 48V server-rack batteries. Always verify specifications with manufacturers to match your system’s requirements.
