Descripció

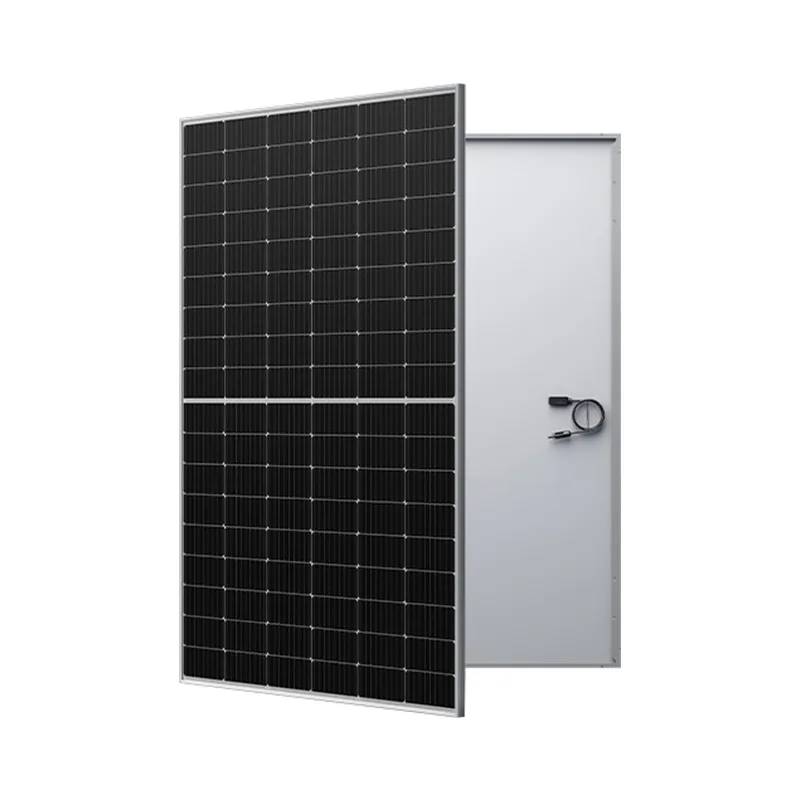

Cooli Photovoltaic Panels 410W/450W/550W

First-class Quality Assurance:

10-year warranty for material and technology
25-year linear power output warranty
Every year 0.55% power attenuation

Certificacions

Got ISO9001,ISO14001,ISO45001,IEC61215,IEC61730, etc, Certificats.

Photovoltaic Panels

Higher Durability

The multi-busbar design can decrease therisk of the cell micro- cracks and fifingers broken.

High Power Density

High conversion efficiency and more power output persquare meter,by lower series resistance and improved light harvesting.

PID Resistant

Tested in accordance to the standard IEC 62804,our PV modules have demonstrated resistance a gainst PID (Potential Induced Degradation),which translates to security for your investment.

Bigger Cells with better performance

A slight increase of the size of our cells, Boosts the performance of the newest modules by six percent on average.

400W/450W/500W Solar Photovoltaic Panel
Componets	410P	460P	550P
Cell Amount	54*2 pcs	60*2 pcs	72*2 pcs
Maximum System Voltage	1500V	1500V	1500V
Junction Box	IP68	IP68	IP68
Frame	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy
Cable	4mm²/300mm	4mm²/300mm	4mm²/300mm
Application Level	Class A	Class A	Class A
Connector	MC4 Compatible	MC4 Compatible	MC4 Compatible
Pes	21.5kg	23kg	27.3kg
Dimensions	1722mm1134mm 30mm	1909mm1134mm 30mm	2279mm1134mm 35mm
